Multifunctional 15-inch Touch Screen Smart Medical Health Analyzer Checkup Kiosk
Product specification:
| Model |
SH-T15 |
| Control system |
Smart OS operating system |
| Advertising |
HD LCD 15-inch touch screen, AI robot guided operation |
| Display: video/picture/measurement result/slogan |
| Languages |
Supports 17 languages including Thai and Malay, English, can switch languages freely. |
| Intelligent recognition |
Standard: face recognition, user input login; |
| Optional: Thailand IC/ID card, QR code scanning, etc. (other methods can be customized) |
Height
measurement |
System |
Using millimeter wave/ultrasonic sensors, high-frequency millimeter wave signal
ranging, not affected by light, temperature, etc. |
| Range |
20~200cm; accuracy: 士0.5cm; division value: 0.5cm or 0.1cm (adjustable) |
Weight
measurement |
System |
Precision balanced beam resistive strain sensor |
| Range |
5~500kg; accuracy: 士0.1kg; division value: 0.1kg or 0.01kg (adjustable) |
| BMI |
Adopt the latest WHO standard (can be adjusted according to needs)
采用最新的世卫组织标准(可根据需求调整) |
| Blood pressure |
Principle |
Intelligent pressurization technology, oscillometric measurement method
智能加压技术,示波计测量方法
(supports left and right arm)
(支撑左右臂) |
| Range |
Pressure: 0-299mmHg(0kPa-39.9kPa), pulse: 40-180 beats/min |
| Accuracy |
Pressure:3mmHg(士0.4kPa), pulse rate: Accuracy is 5% |
| Body fat |
Principle |
4-electrode human bioelectrical impedance method, range 5%-75% |
| Indicators |
Body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc. |
| Blood oxygen |
Finger dip oximeter, range:35%-100%; |
| Temperature |
Infrared forehead temperature gun, optional wireless temperature measurement |
| Blood sugar |
20-600mg/dl (1.1-33.3mmol/L); 20% when blood glucose concentration> 75mg/dl (4.17mmol/L) |
| WHR |
Waist circumference and hip measurement |
| Vision |
Vision, astigmatism, color weakness and color blindness, etc. |
| Thermal printer |
Micro thermal printer automatic paper cutting, paper size:50*57mm |
| Health report |
Thermal printing; scan QR code by phone to view report and download the A4 report inThai, A4 report (optional) |
| Expansion |
12-lead/rapid ECG, alcohol test, four blood lipids, urinalysis, hemoglobin, uric acid, cholesterol, TCM, mental health, etc. |
| Data output |
Wireless |
WiFi: Bluetooth (optional);4G (optional), cloud interface (optional), etc. |
| Wired |
RS232 serial port (standard); RJ45 |
| Data storage |
Can store more than 1 million pieces of measurement data and supports U disk export. |
System
compatible |
Local archives |
Data can be transmitted to the customer's software, such as Thailand HIS/LIS system/APP/PC, etc. |
| Self-service membership registration, health screening, historical query, data statistical analysis and management. |
| Voltage |
AC100V-240V(50Hz/60Hz); |
| Dimensions |
Machine size: 96.5*70.9*231.6cm/L*W*H; Net weight: 55kg; Gross weight: 80kg |
| Package size:108*76*155cm(80kg) |
| Use scenarios |
Hospital, community service station, disease control center, physica examination center, pharmacy, clinic, shopping mall/supermarket, gym, etc. |
Certification:
Product description:

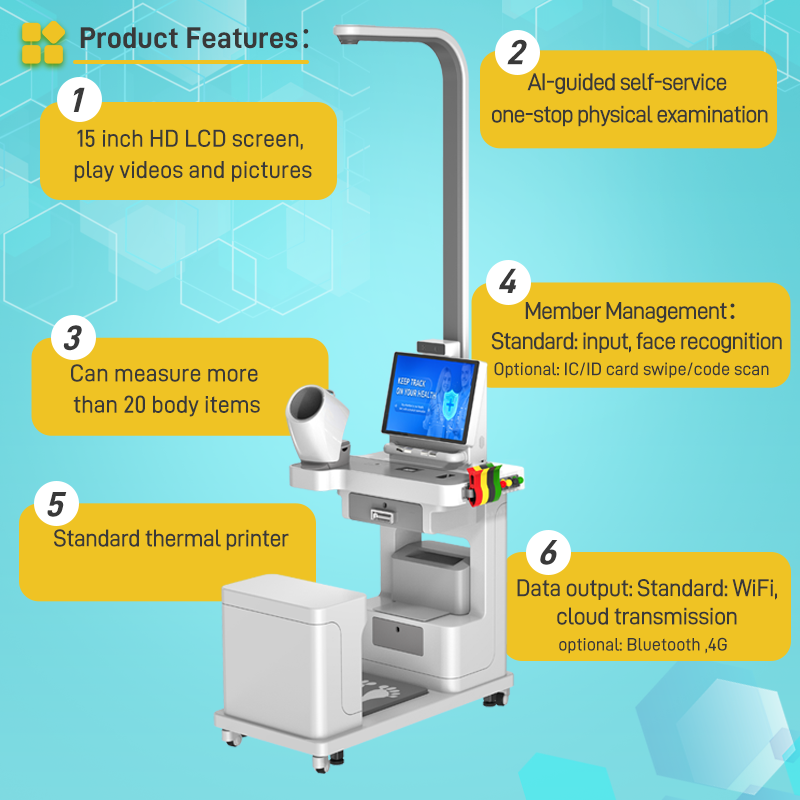

SH-T15 Health Checkup Kiosk Machine Functions:
1.Smart OS operating system
2.15-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
3.Micro thermal printer automatic paper cutting, paper size:50*57mm.
4.AI robot guides operation, automatic voice broadcast measurement results.
5.Ultrasonic/Millimeter wave technology to measure height (non-touch).
6.Precision balanced beam resistive strain sensor.
7.Supports 17 languages including English, can switch languages freely.
8.Intelligent pressurization technology, oscillometric measurement method
(supports left and right arm)
9.Intelligent recognition: standard: face recognition, user input login;
10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa); Pulse range:40-180 beats/min.
11.Three ways to get the report: ①thermal printer②phone report③download report
12.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
13. Body fat measurement indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
12.Optional functions:Thailand IC/ID card, QR code, etc.
